Aluminum sides for System 8

[Happy]

Dear System 8 Owners. I want to make my own sides for the System 8, got some piece of old cherry wood - can someone please measure the sides that Roland offers, length of the sides, angles, position of the holes to drill
Maybe someone can just put on side on a scanner?

Cheers
Mitch

Just bumped into this page from Roland with all dimensions, also for the Xm.
A wood shop should be able to help out making a pair.
Bit weird, googled a lot and only found it today.
https://www.roland.com/global/promos/cu ... our_synth/

[MartinJ2EX]

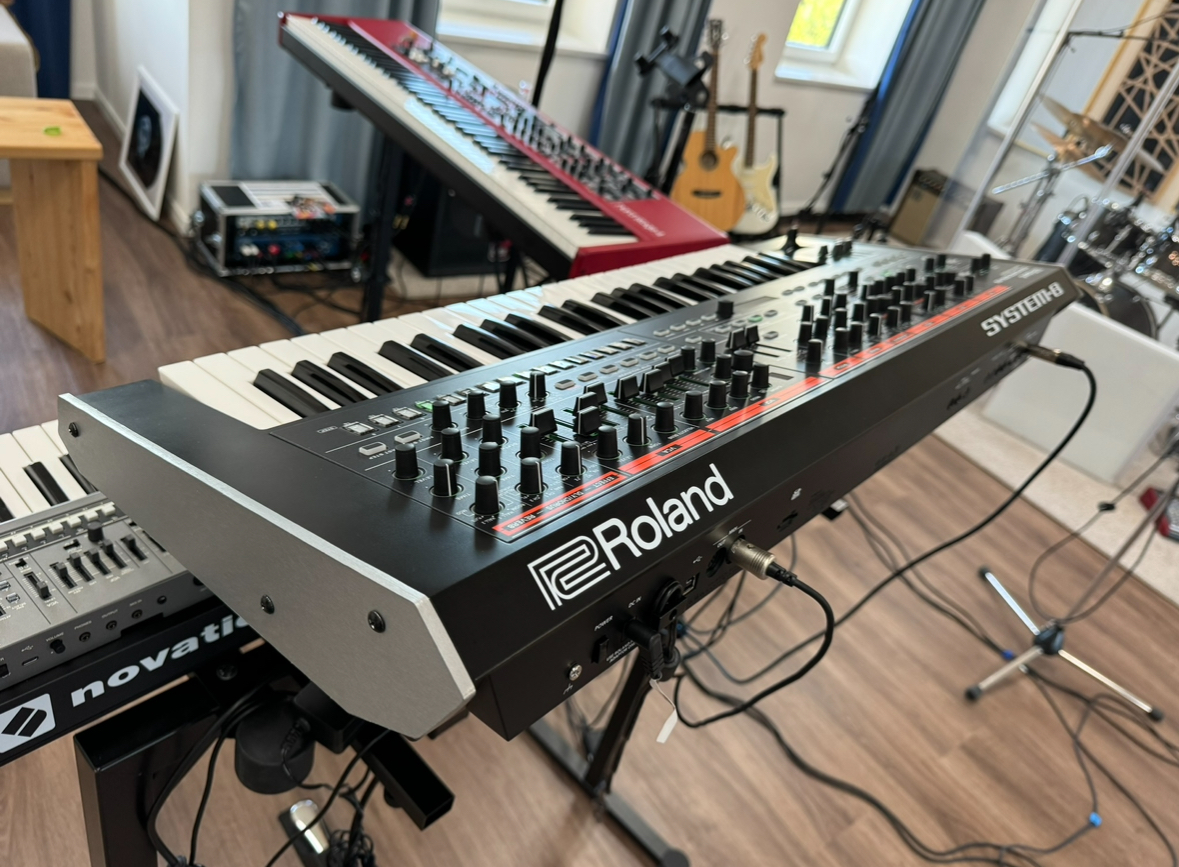

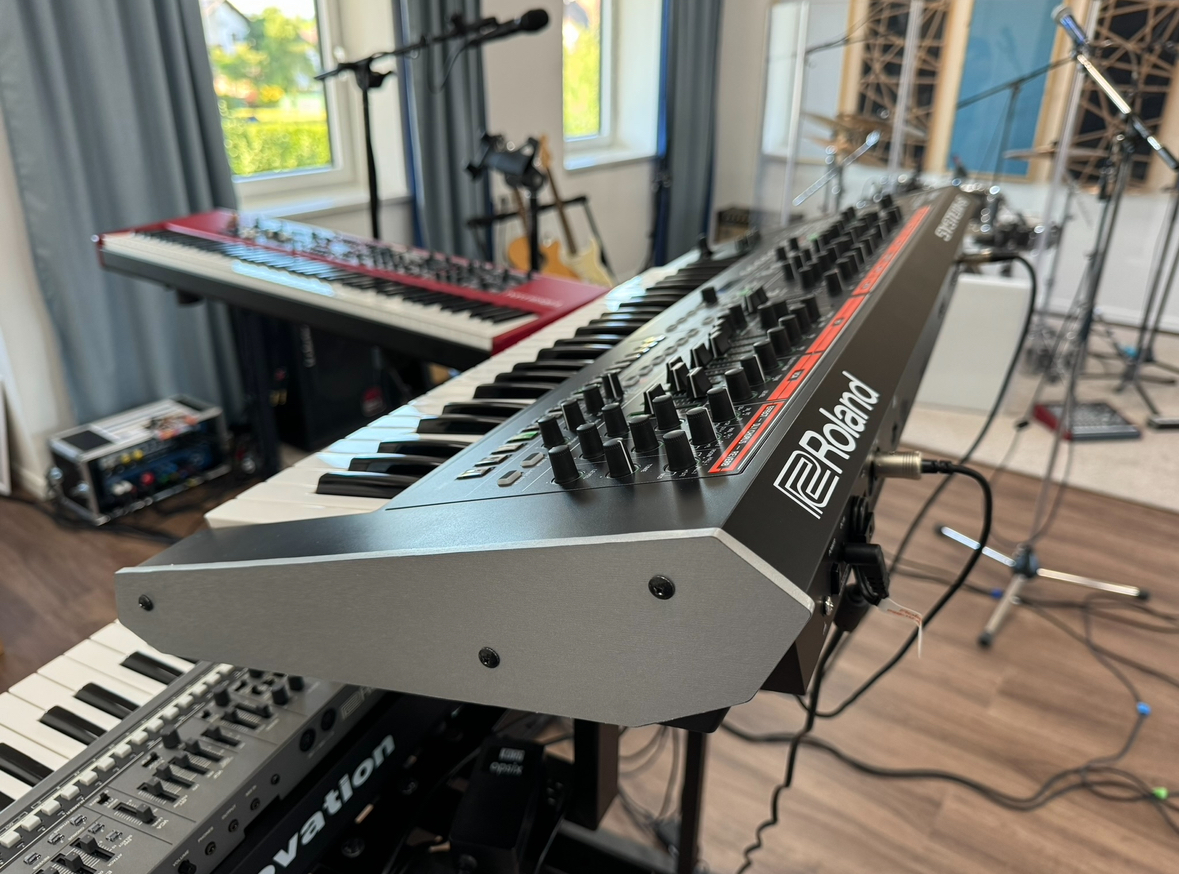

Just finished the “Jupiter-Mod” for my System-8.

As the original side cheeks are discontinued, and they aren’t “Jupiter-like” enough, I decided to do some DIY cheeks.
Pretty happy about the result!


[MartinJ2EX]

Just finished the “Jupiter-Mod” for my System-8.

As the original side cheeks are discontinued, and they aren’t “Jupiter-like” enough, I decided to do some DIY cheeks.
Pretty happy about the result!

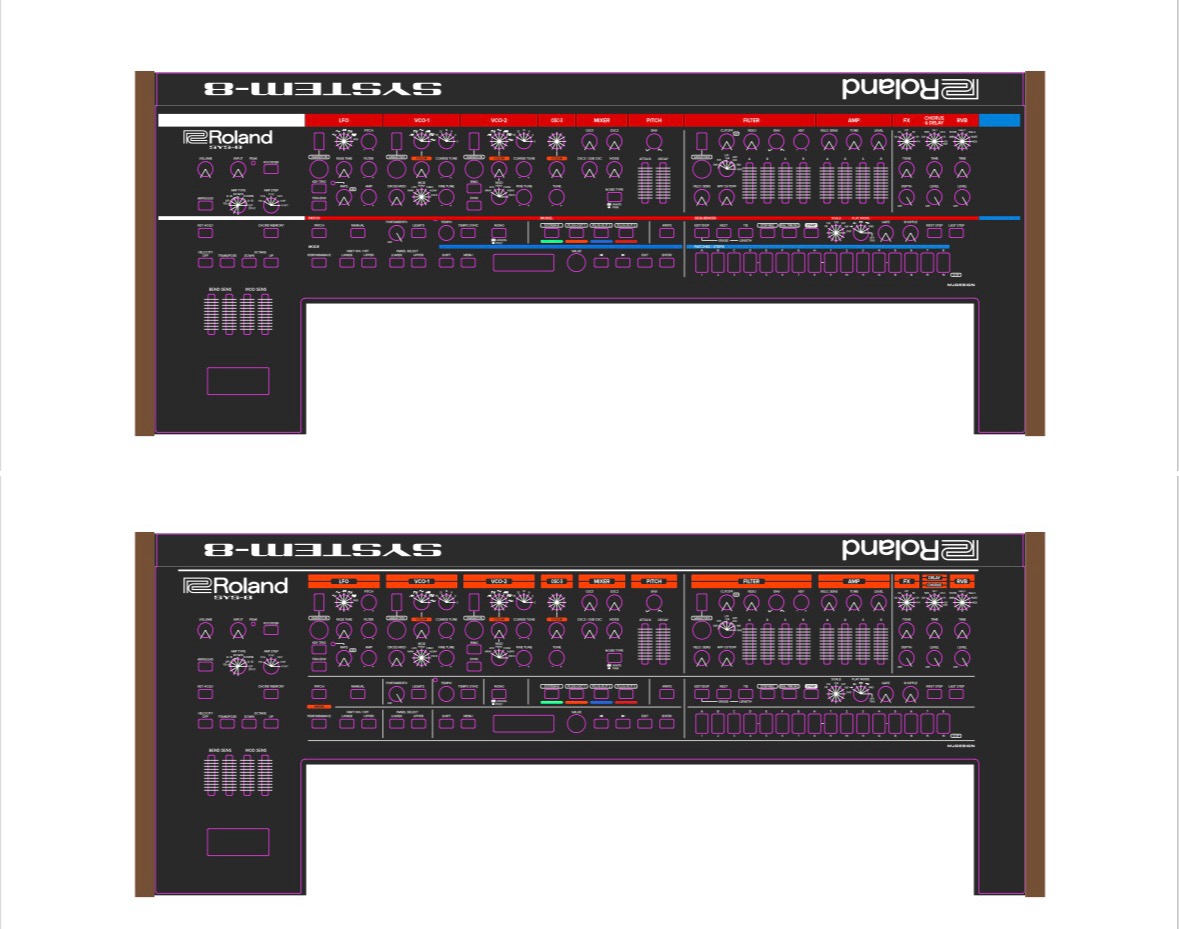

I’m currently in the process of developing fullsize overlays for the System-8.
Will update as soon as the first prototypes arrive.


[MartinJ2EX]

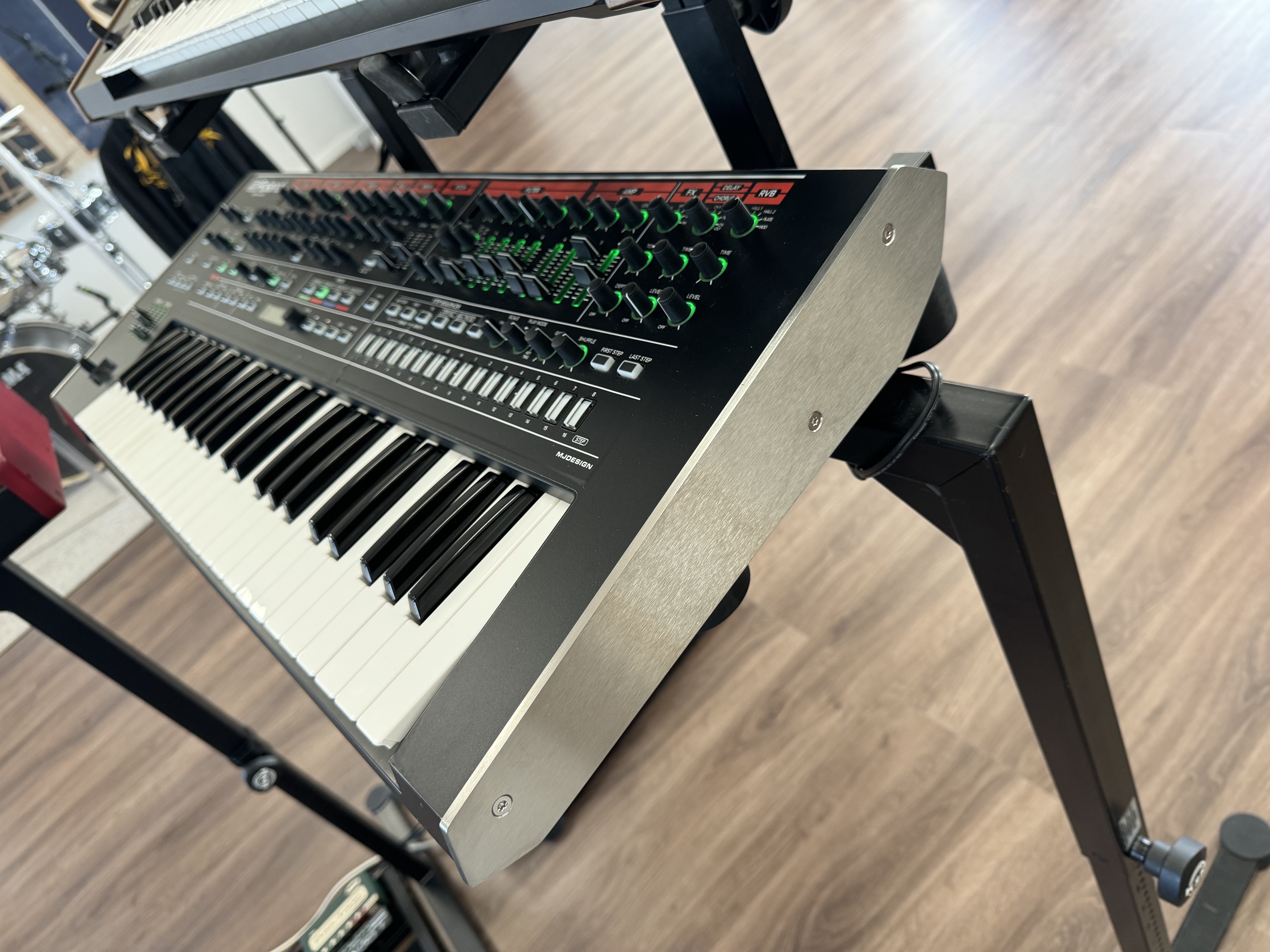

Stainless Steel!
